CHANNEL8AN

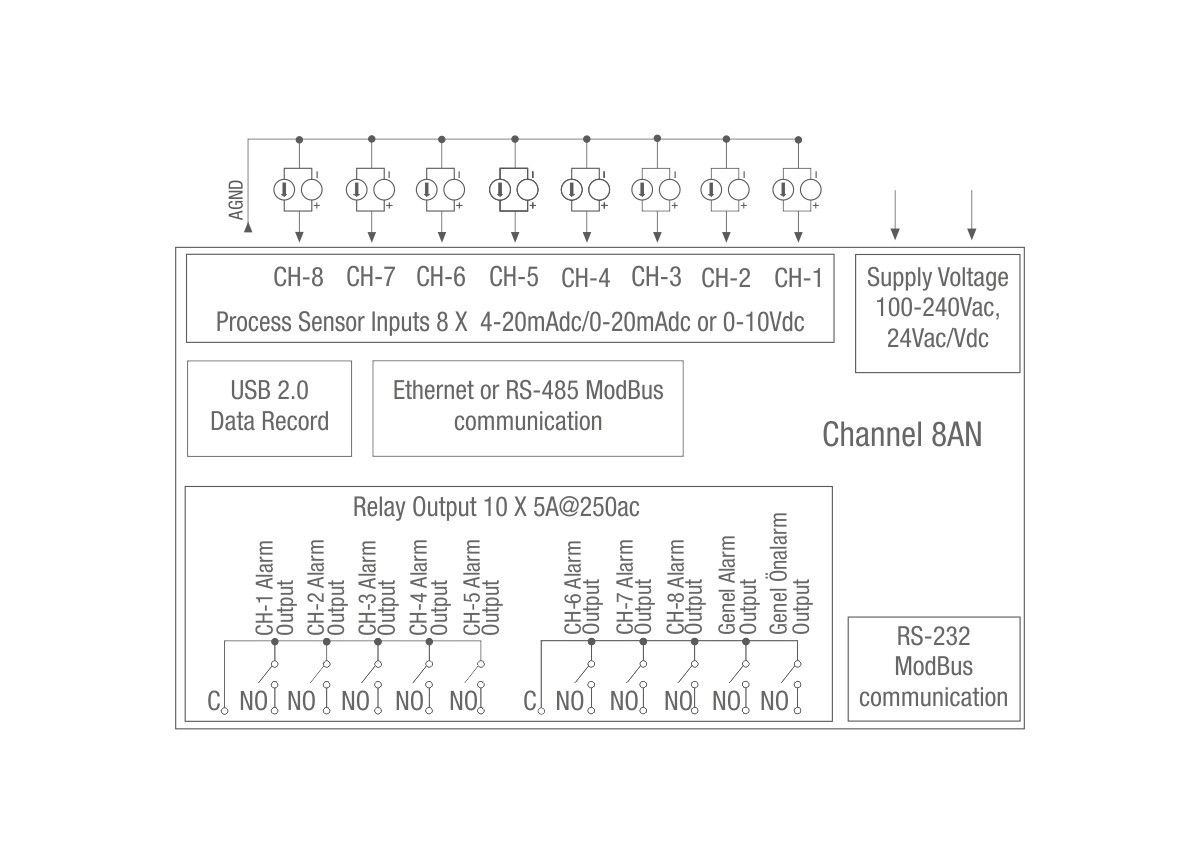

• 8 Channel Analogue Scanner, 8 Analogue inputs, 8 Relay outputs, Data logging.
• 320 x 240 Pixel TFT LCD screen
• 3 Different alarm and pre-alarm types for each channel (High, Low and Band Alarms)
• Relay or (pnp “source”) transistor output
• 8 Analogue inputs
• 8 PT-100 input with two wires
• ON-OFF control
• Sensor error detection
• Adjustable offset
• User defined channel labels
• Operating with Real Time Clock (RTC)
• Data Logging to USB Flash Memory
• Adjustable data logging time interval
• ModBus RTU communication protocol (Optional RS-232, RS-485 and Ethernet communication)
