1. Compact
Size reduction and performance enhancement by heat dissipation analysis and 3D design process
Best-in-class performance and size-optimized solutions
5.5/7.5kW dimension
• Half sized compared to other company products.
2. Optimization
Optimized for lifting load operation such as elevator and lift systems, L100 series provide powerful and essential functions
Premium high performance vector control
Available for various load conditions (control of both IM and PM)
Smooth and precise control by optimized control algorithm (voltage/speed/flux control)
Fast installation by optimized autotuning (PM/IM standstill auto-tune, IM rotational auto-tune) and easy control gain tuning
Essential functions for elevator systems
• Creepless
• Load Cell-less & anti-rollback
• Battery operation function for emergency (power failure)
• Auto light load search
• Optimized multi step speed control for short floor operation pattern
• Elevator I/O support
• Anti-hunting regulator
3. Responsibility
Built-in safety function and powerful anti-noise

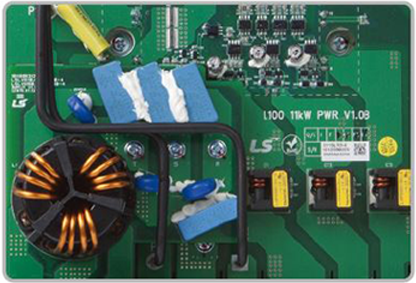

Built-in anti-noise EMC filter
• 1st environment/category C2 (Class B) CE certificate

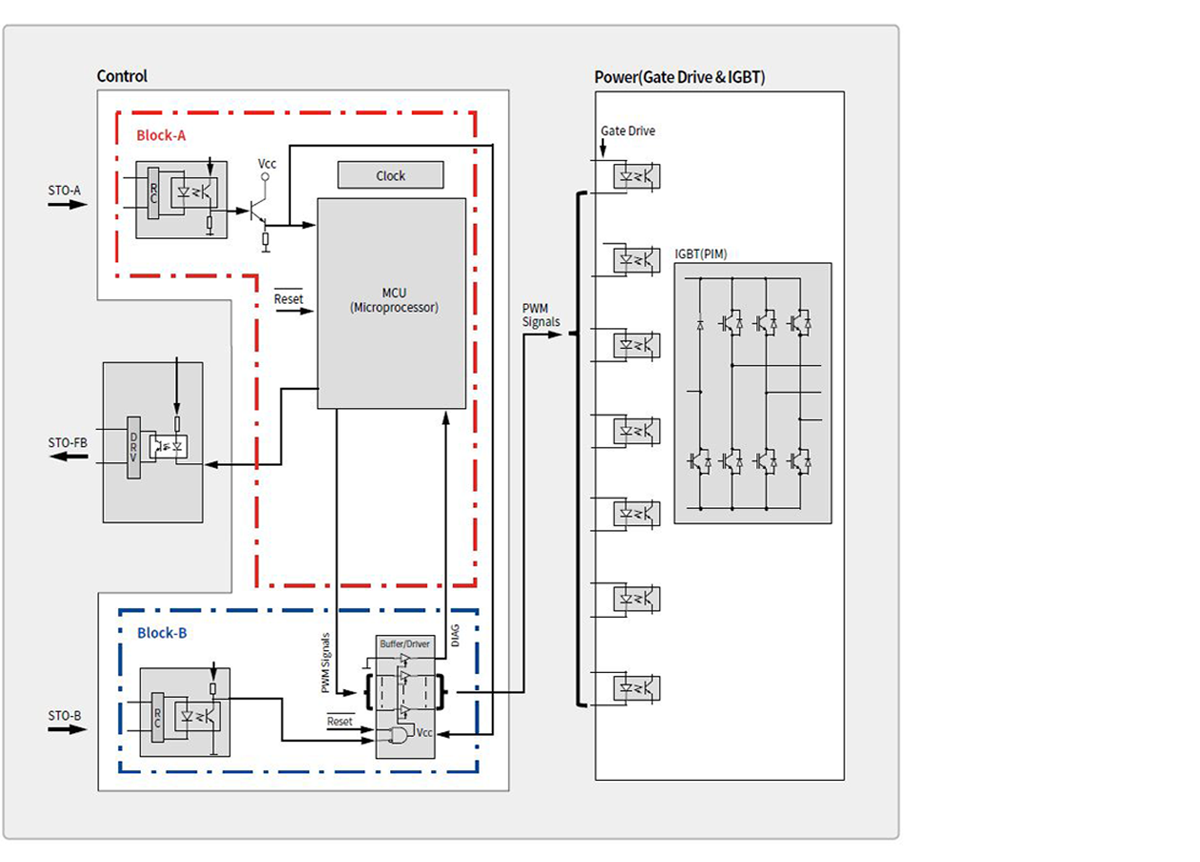

System stability with built-in safety (SIL 2)
4. Convenience
Various features to enhance user convenience in installation, commissioning, and maintenance
Status LED for operation monitoring
Easy keypad connection through front slide door
Built-in dynamic brake circuit
Removable terminal for easy maintenance
DriveView9 support
Built-in communication: CAN2.0B, RS-232C
DC Reactor connector
Easy cooling fan replacement
Option

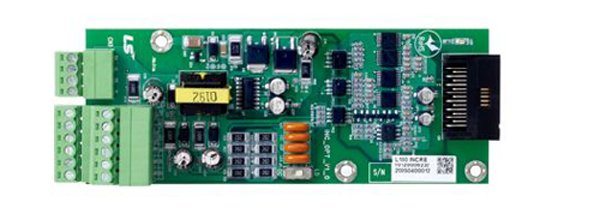

Incremental Encoder
• Incremental A/B Pulse
• Power: DC5/12/15V
• Input: A+[PA], A-, B+[PB], B-
• Output: RA, RB, RG (Encoder A, B phase return pulse)
• Encoder: Line drive (5V), Open collector (12V, 15V)

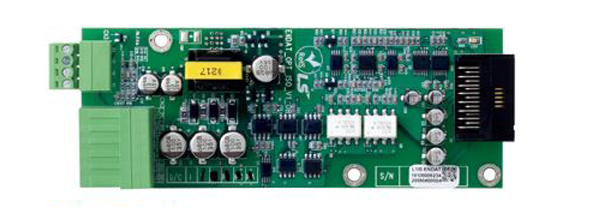

EnDat Encoder
• HEIDENHAIN Encoder I/F (EnDat v2.2)
• Power: DC5V
• Input: SIN+, SIN-, COS+, COS-, DATA+, DATA-, CLK+, CLK-
• Output: RA, RB, RG
• Encoder: ECN413, ECN1313, ERN487, ERN1387
SIN/COS Encoder
• HEIDENHAIN Encoder I/F
• Power: DC5V
• Input: SIN+, SIN-, COS+, COS-, SIN2+, SIN2-, COS2+, COS2-
• Output: RA, RB, RG
• Encoder: ECN413, ECN1313, ERN487, ERN1387
Elevator I/O (ELIO)
• Dedicated to elevator I/O terminal
• Digital input: 9 points for elevator car control
• Digital output: 10 points for elevator car position and operation control
• Fault information output: 4 points

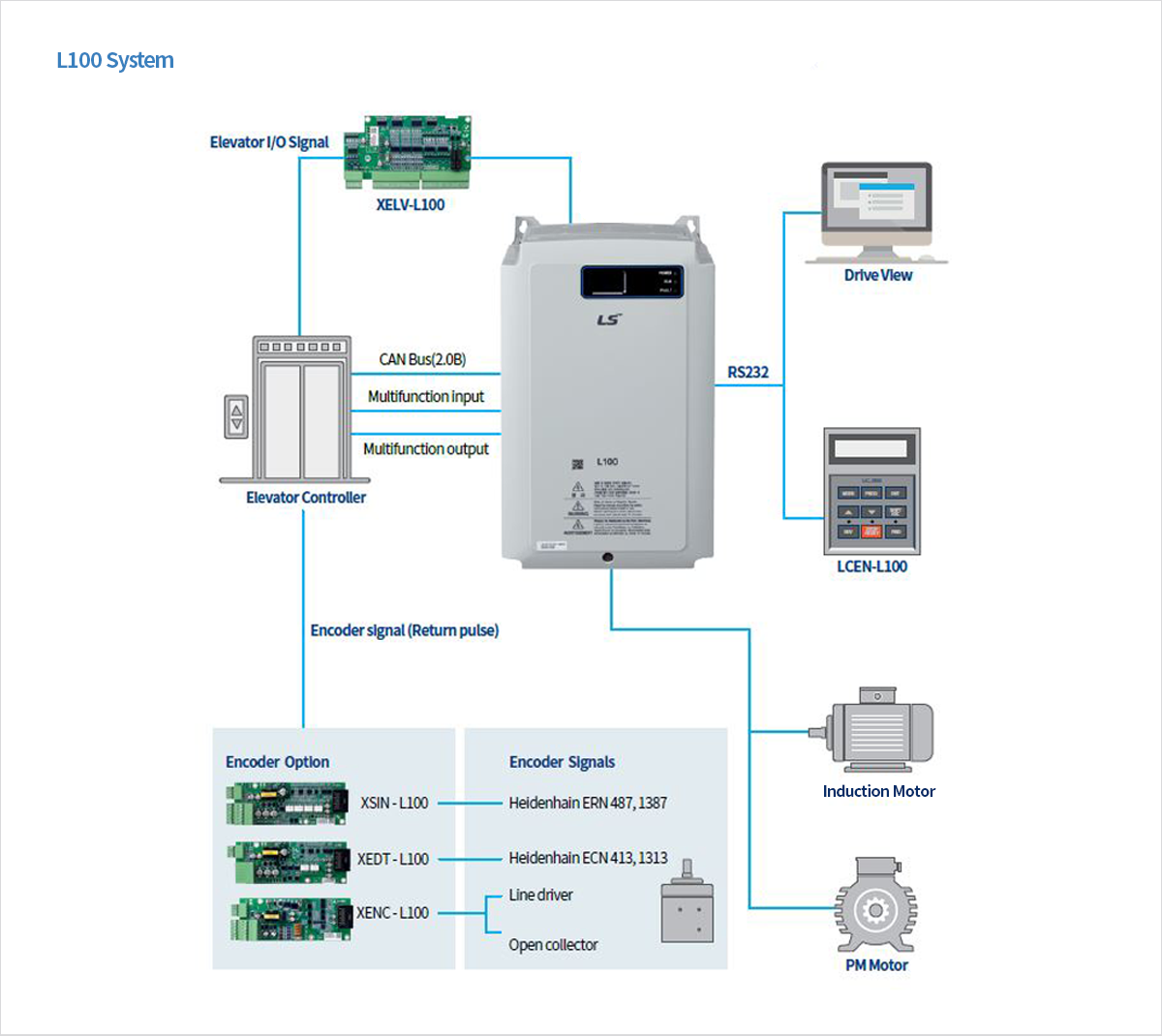

System Configuration
